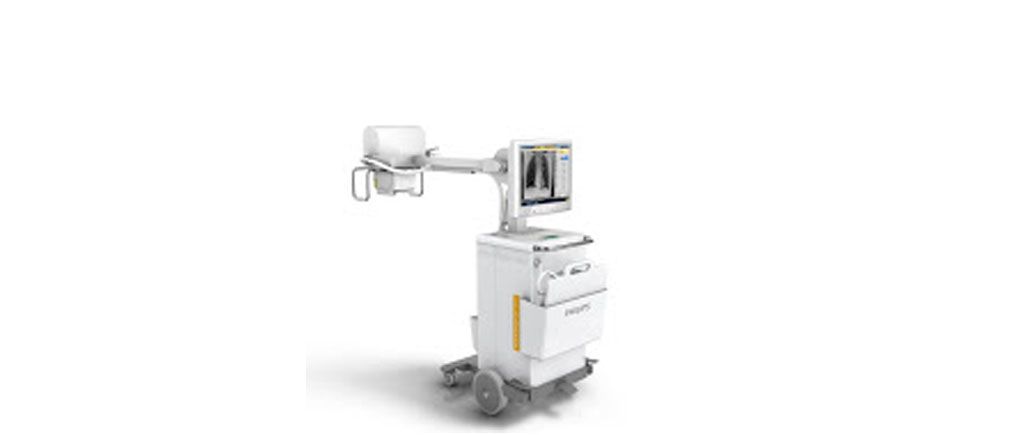

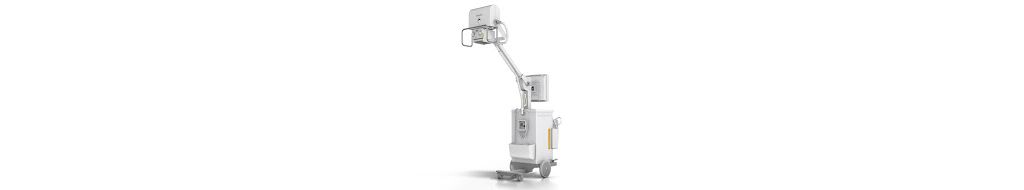

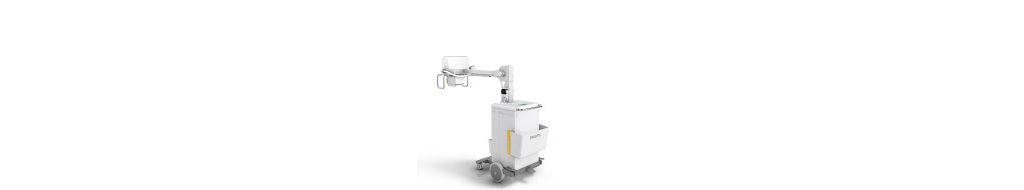

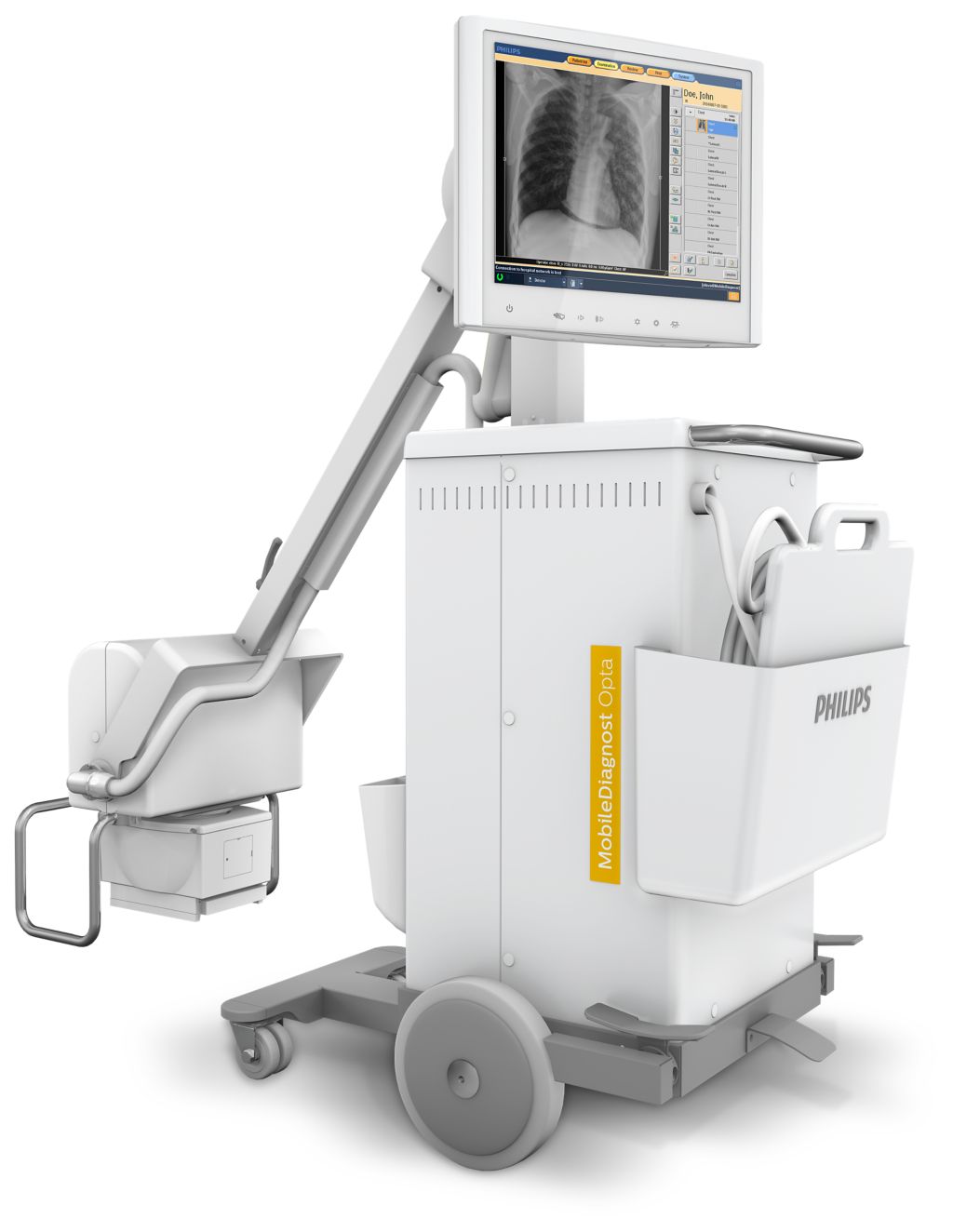

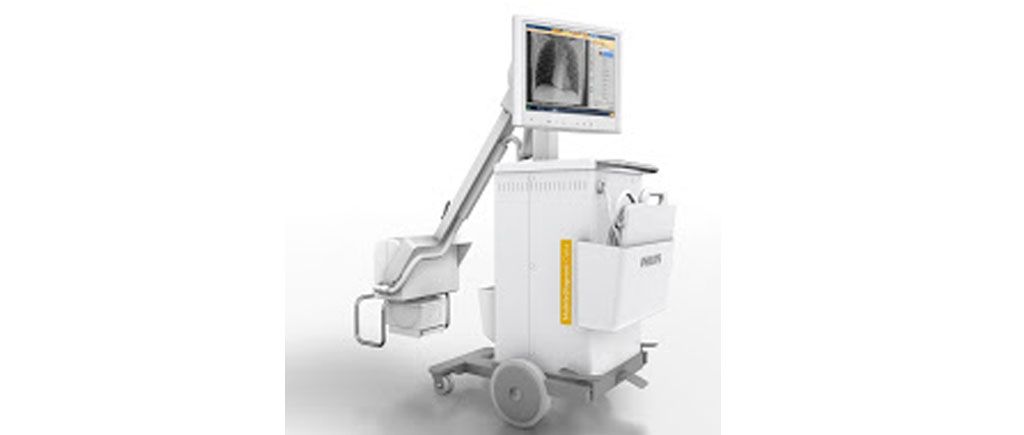

MobileDiagnost Opta
Mobile X-ray system
MobileDiagnost Opta
Mobile X-ray system
A powerful, lightweight and compact portable digital X‐ray machine optimized for all-round performance and fast return on investment.
Features
Small form factor fits tight spaces
Enjoy ease of mobility. Lighter in weight and more compact than motorized systems, MobileDiagnost Opta moves around challenging spaces in ORs, ERs, ICUs, and general wards with freedom and ease.
Only 3 clicks to exam completion
Our Eleva user interface provides all the tools and controls necessary for seamless procedures. Its pre-sets and customized user profiles enhance the work environment and promote workflow continuity.
Special APR controls include pediatric settings
Built-in APR (anatomical programmed radiography) controls help achieve a high level of exposure accuracy by selecting filters based on anatomy and capturing quality images with effective dose management.
Specifications
- Detector
- Type
- Digital tethered flat detector
- Scintillator
- High stability scintillator
- Pixel size
- 150
- Detector size
- 35 cm x 43 cm (approx. 14” x 17”)
- Active area
- 34.3 cm x 42 cm (13.5” x 16.54”)
- Image matrix size
- 2304 x 2800 pixels
- A/D conversion
- 14 bits
- Cable length
- 6
- Collimator
- Type
- Manual, with LED light field indicator
- Rotation
- +/- 120O
- Double laser line for 1m SID
- Yes, Optional
- Filters
- 1 mm AI +0.1 mm Cu/1 mm AI + 0.2 mm Cu/2 mm AI/0 mm AI
- Filter select LED indication
- Yes
- Brightness of LED for FOV
- <gt/>160 lux
- Tube
- Tube
- Rotating anode
- Anode material
- Rhodium, Tungsten, Molybdenum
- Nominal focal spot
- Small focus: 0.8 Large focus: 1.3
- Anode thermal capacity
- 80 kJ (107 kHU)
- Generator
- Type
- High Frequency
- Power
- 16 kW/32
- mAs range
- 0.1-110 mAs (12.5% steps)
- kV range
- 40 – 125 kV (1kV steps)
- mA range
- 50 – 160 mA/50-320
- Exposure times
- 0.001 - 1
- Frequency
- 40
- Small focus / Large focus
- Small focus / small and large focus
- Eleva Workspot
- Hard disk
- 500
- Image storage
- Typically 4,000 images

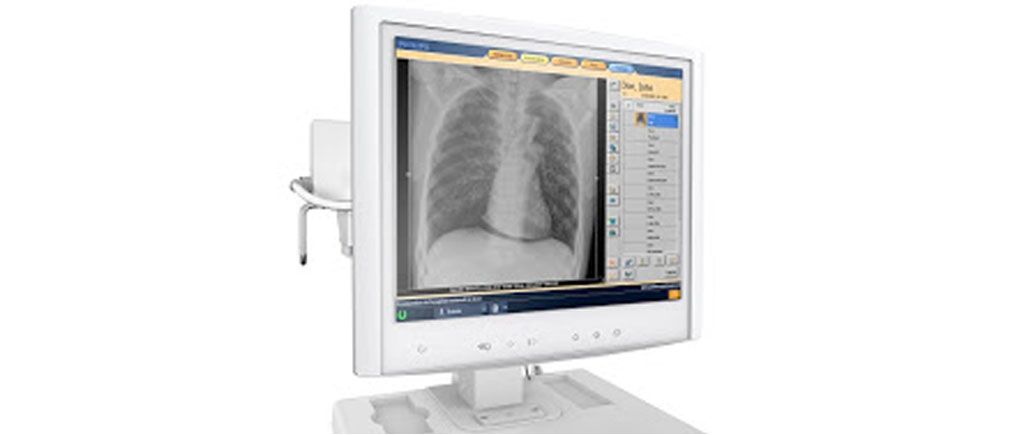

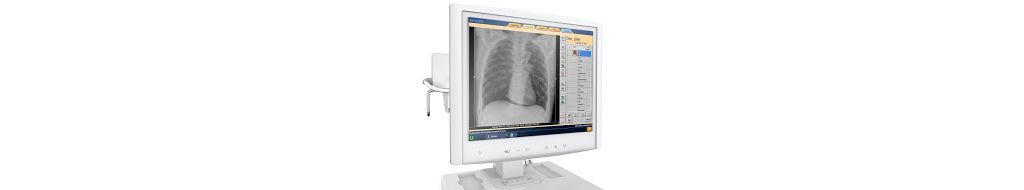

- Monitor
- 19” LCD color touch screen monitor (1280 x 1024)
- UNIQUE image processing
- Yes
- Battery capacity
- 4200
- Matrix depth
- 14 bit / pixel
